KT Ginxu Dragonfly Mk3 Downwinder Foil Board

KT Ginxu Dragonfly Mk3 Downwinder Foil Board

KT's Downwind Foil board, that works extremely well when combined with a Wing, as locals to here have testified. If you are looking for one board to take care of multisport foiling, this one has to be considered. KT say...

All-Around,  Built for downwind, parawing, wing and for versatility across surf, open ocean swells, rivers, and lakes.

With a precisely optimized rocker, 18.75” width across all sizes, and refined over dozens of prototypes, V3 delivers increased glide, stability, and speed in both open-water and inland conditions.

Inspired by our big wave gun contours, and redesigned nose to tail volume distribution across a flatter displacement hull enhances acceleration, smooth takeoffs, and control in choppy waters, crosswind conditions, and mixed swell. The Dragonfly 3 is built for downwind foiling, lightwind winging, surf foiling, and parawinging, making it a true daily driver for foilers seeking versatility in a variety of conditions.

Ideal Locations: Maliko, Maui, Hood River, La Ventana, San Francisco Bay, Great Lakes, Tarifa, Sydney Bays.

Downwind, Sup, Wing.

The Ultimate All-Arounder.

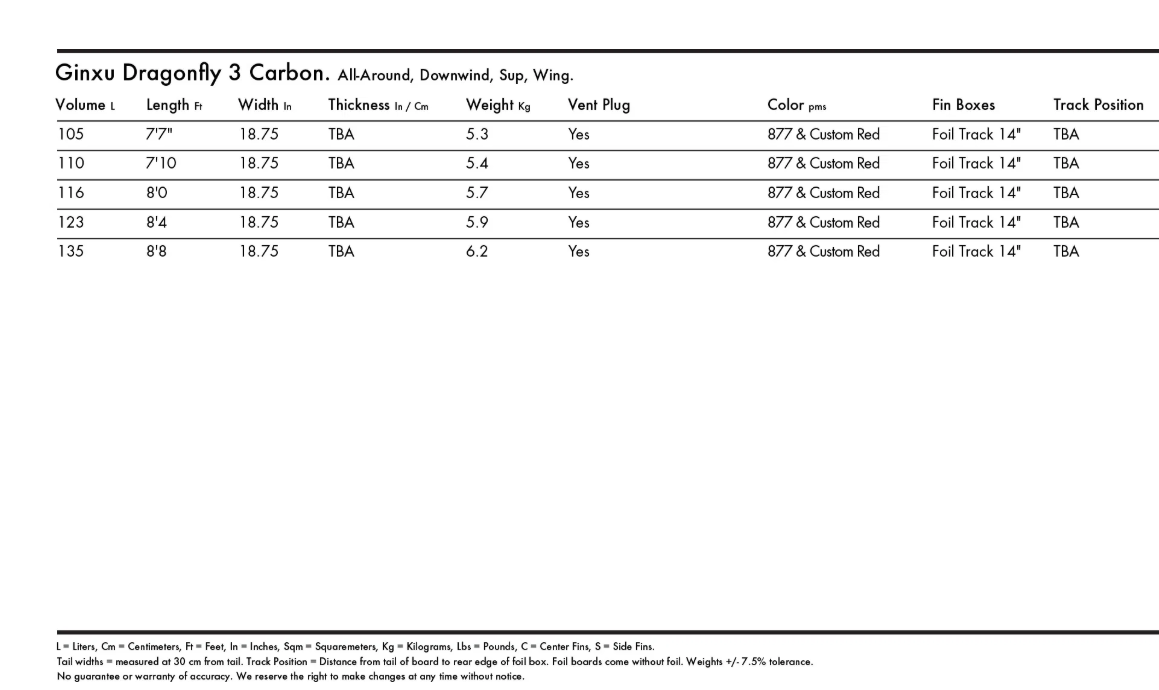

Available in 105, 110, 116, 123, 135 liters.

Wide Volume Range: 5 sizes covering the key range of disciplines, riding styles, and conditions.

FOR MORE TECH INFO -Click Here!

The Dragonfly 3 is ideal for riders seeking one board for varied conditions. Perfect for intermediate riders who have progressed beyond their first board but still want a balance of stability and performance.

Sup Foiling Size Guide

Newcomer:

Rider weight (kg) +40L

Added stability, more float, and easy take off

Intermediate:

Rider weight (kg) +30L to +35L

Balance of manuverability and performance

Advanced:

Rider weight (kg) +15L to +25L

Highest performance feel & least swing weight


Parawing / Wing Foil Size Guide

Newcomer:

Rider weight (kg) +30L to +40L

Added stability, more float, and easy take off

Intermediate:

Rider weight (kg) + 0 to +20L

Balance of maneuverability and performance

Advanced:

Rider weight (kg) – 20 to +10L

Highest performance feel & least swing weight

Construction: New Lightweight Slotted Traction Pad: Maximum grip at 50% of the weight of previous traction pad designs. Enhanced feel and response while pumping or carving.

New Universal Track System: In-house designed 14” reinforced foil-specific track boxes with puncture-resistant channels for durability and compatibility across hardware types, mast lengths, and mounting positions.

Full Sandwich: Available in the 105L size, delivering maximum stiffness, durability, and lightweight performance. 20% lighter and considerably stronger than standard carbon construction. Extra-lightweight EPS core wrapped in a full carbon high-density exo-skeleton. Full biaxial and unidirectional carbon high-density sandwich.

Dual Fusion Core: Available in 110–135L sizes, balancing weight and durability. 10–15% lighter and stronger than previous builds, with a more responsive feel. Biaxial Carbon with Unidirectional carbon patching, and glass reinforcements throughout. Balance of stiffness and strength.

Refined low-end acceleration from the double displacement hull allows riders to ride narrower boards with more stability than before, while maintaining high top-end speed—creating a versatile performer in all conditions.

Disciplines: Its new shape benefits all disciplines, Short period river or lake runs, Messy open occean eddies, Parawing, Light-wind wing, or everyday Sup.

Stability: The consistent 18.75” width provides excellent directional stability across a range of conditions, with improved tracking and control compared to previous wider or flatter designs.

Takeoff: Effective for both “bounce and glide” takeoffs in smaller waves, while also offering higher paddling speeds in longer period open water.

In-house designed 14” reinforced foil-specific track boxes with puncture-resistant channels for durability. Compatibility across hardware types, mast lengths, and mounting positions.

Stock Model comes in Ultralight Marble finish, a high-durability, ultra-thin paint finish that is lighter, stronger, and enhances sealing.

Note. Delivery if no stock shown is generally 5-8 working days, as shipped from Spain.
